BREEZWAY LOUVRES
3D Models and Renders
You are currently viewing the 3D Models and Renders section. Visit the Customising Options page for a more comprehensive selection of Breezway Louvre options.
Whenever you see this symbol click on an illustration to view a 3D interactive version.

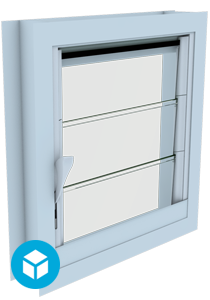

Altair Louvres in a Component System

Altair Louvre and Weatherstrip Components can be screw fixed to the outer frame

Exploded View of Altair Louvre Componentry with Weatherstrip

Exploded view of Altair Louvre Componentry with backing strip that can be fixed to jambs of the outer frame to provide a flush finish

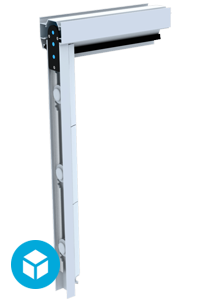

Altair Powerlouvre Component System

Exploded view of Altair Component Powerlouvre System using backing strip

Altair Louvres can be integrated with security jamb and 16mm D bar to provide security and a neat finish with no visible fixings

Exploded view of Altair Louvre with Security Jamb and D Bar

Altair Louvre with U Channel Security and Round Bar

Exploded View of Altair Louvre with U Channel Security and Round Bar

Exploded view of Altair Component Powerlouvre IGLU System

Exploded view of Altair Component IGLU System

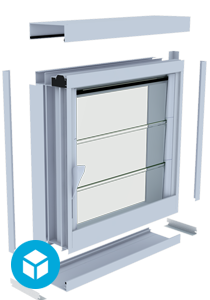

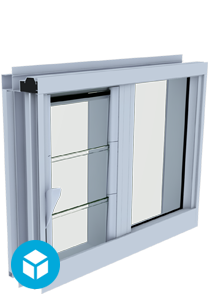

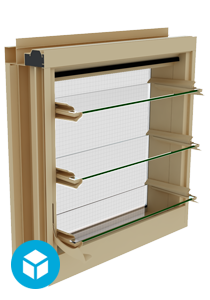

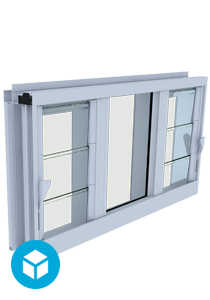

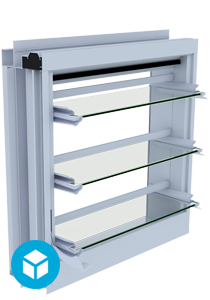

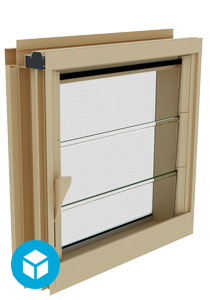

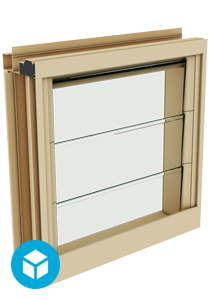

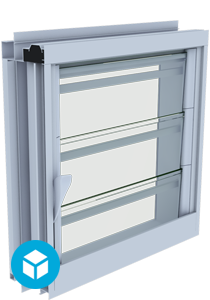

Altair Louvres in the Breezway EasyscreenTM System

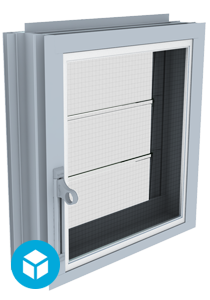

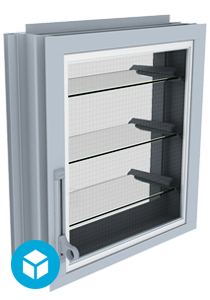

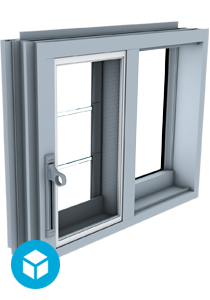

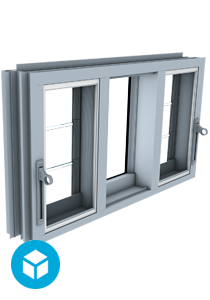

Altair Louvres in the Breezway Innoscreen® System

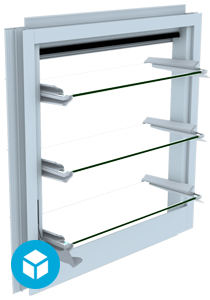

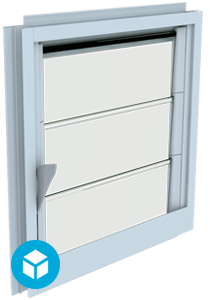

Altair Louvres in the Breezway SL2® System

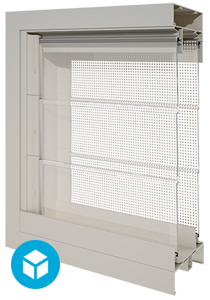

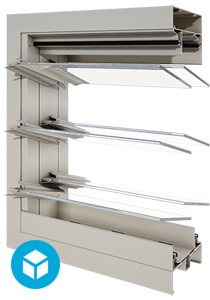

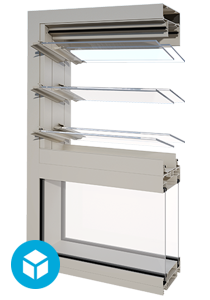

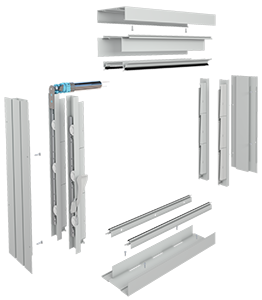

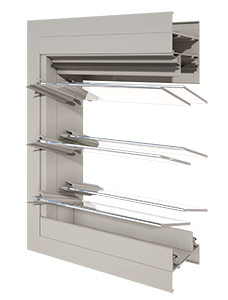

Altair Louvres in the Breezway DualairTM Component System

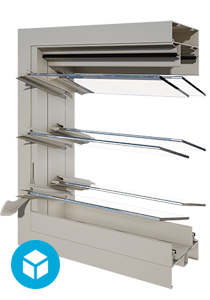

1 Bay Closed (Dual Powerlouvre) in Alspec McArthur Frame

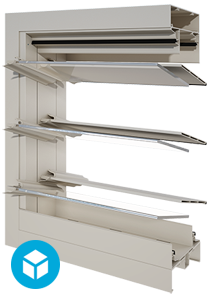

1 Bay Closed (Dual Powerlouvre) with Glass & Aluminium Blades in Alspec McArthur Frame
