Overview

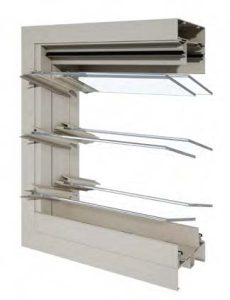

Breezway Altair Louvre Windows are a premium louvre window system designed to deliver strong natural ventilation, daylight control, and a clean architectural look across residential and commercial projects. Using Breezway’s framed louvre design, Altair is built for performance and everyday usability—allowing the blades to be angled to catch breezes, manage glare, and support passive cooling, while still providing weather protection when closed. The system is commonly specified where you want a refined, consistent façade and dependable operation, with a range of configuration options and finishes to suit different building styles and compliance requirements.
Altair® Louvre Description and Functions
Extruded “T” shaped aluminium operating bars provide a strong, non corrosive, durable and smooth operating mechanism. It also adds extra security as the bars operate to the outside of the channel at all times.
For long and maintenance free use the operating and over centre locking mechanisms are manufactured from non corrosive material, including all rivets and fasteners.
Injection moulded bearings made of acetal use the living
hinge concept to pull the louvre blade against the channel as the window is closed. This results in higher resistance to water and air. Security is now increased by interlocking teeth in the bearing retainer. (Tested to over 40,000 open/close cycles).
Clips are manufactured from UV stabilised polypropylene. The clip colour is solid throughout. Primary and secondary drainage channels within the louvre clips direct the flow of any water to the outside of the building. Colour matching is available for Breezway Standard Colour range.
Altair keylocks are zinc cast with a brushed chrome finish. The folding key design allows easy operation when installed in frames with deep jambs or reveals.
The handle is made entirely from a UV stabilised acetal. This makes it not only non corrosive, but ideal for commercial areas, as it will spring back to position, even when bent severely. For other handle options see the Altair Handles section. Colour matching is available for Breezway Standard Colour range.
The Altair Louvre channel is made from 6060-T5 extruded aluminium.
Diagram Notes:
Extruded “T” shaped aluminium operating bars provide a strong, non corrosive, durable and smooth operating mechanism. It also adds extra security as the bars operate to the outside of the channel at all times.
For long and maintenance free use the operating and over centre locking mechanisms are manufactured from non corrosive material, including all rivets and fasteners.
Injection moulded bearings made of acetal use the living
hinge concept to pull the louvre blade against the channel as the window is closed. This results in higher resistance to water and air. Security is now increased by interlocking teeth in the bearing retainer. (Tested to over 40,000 open/close cycles).
Clips are manufactured from UV stabilised polypropylene. The clip colour is solid throughout. Primary and secondary drainage channels within the louvre clips direct the flow of any water to the outside of the building. Colour matching is available for Breezway Standard Colour range.
Altair keylocks are zinc cast with a brushed chrome finish. The folding key design allows easy operation when installed in frames with deep jambs or reveals.
The handle is made entirely from a UV stabilised acetal. This makes it not only non corrosive, but ideal for commercial areas, as it will spring back to position, even when bent severely. For other handle options see the Altair Handles section. Colour matching is available for Breezway Standard Colour range.
The Altair Louvre channel is made from 6060-T5 extruded aluminium.
Altair® Louvre Systems
Altair Louvres are available in either the fully integrated Louvre Window System or a Component System for other frames.

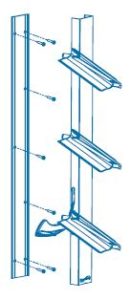

Louvre Component System
Product Performance Warranty: Housing
Altair Louvres are available in either the fully integrated Louvre Window System or a Component System for other frames. Altair Louvres are designed to meet and exceed the requirements of AS2047-2014 ”Windows in Buildings”.
The following tables outline the maximum variations that Breezway will warrant per Non-Cyclonic and Cyclonic Wind Classification and Water Penetration as per AS2047-2014 “Windows in Buildings”. Exceeding these constraints will void this Warranty. The limitations have been generated through extensive NATA test results, calculations and over 85 years of experience manufacturing louvre windows.
Breezway Window Systems supplied fully glazed by Breezway Australia will be labelled as compliant with AS2047-2014 by Breezway Australia.
Breezway Window Systems supplied unglazed by Breezway Australia can be labelled as compliant with AS2047-2014 by the window system supplier when glazed according to the limitations of this Product Performance Warranty.
Window fabricators installing the Altair Component System within a window frame will be able to label their window as compliant with AS2047-2014 when:
- The limitations of this Product Performance Warranty are complied with.
- The complete Altair Component System is used, complete with Altair Weatherstrips and seals. If the complete Altair Component System is not used, the window fabricator assumes responsibility for the testing and warranting of the performance of the window system.
- The Altair Component System is installed to Breezway procedures.
Window fabricators installing the Altair Component System within a window frame assume responsibility for:
- The fixing of the Altair Component System into the window frame.
- The performance and fixings of the frame, mullions and transoms.
For residential or commercial building classes, or for housing outside the limitations of AS4055, please consult Breezway with your specific project requirements so we can correctly apply the relevant performance warranty constraints.
Note
SLS (Serviceability Limit State Wind Pressure / Design Wind Pressure / Permissible Stress) The ability of the window to perform the intended function under normal service conditions avoiding excessive deflection or the appearance of buckling.
ULS (Ultimate Limit State Wind Pressure / Ultimate Strength Pressure) The maximum load carrying resistance of the window. Subjecting the window to wind pressures in excess of the ULS is likely to result in the window collapsing.
1. Glass blade size and flatness
Glass blades must be 6.0mm ±0.1mm thick and must be straight and flat within 0.3mm/m.
Glass blades must be 152.00mm ±0.6mm high or 102.00mm ±0.6mm high.
2. Mullions
Mullion heights are based on a 1:250 deflection ratio and the maximum warranted louvre bay widths for each N or C rating and window location.
3. Using the Stronghold System for 152mm blade lengths greater than 900mm
The Stronghold System is an optional feature of the Altair Louvre Window which mechanically fixes the blades into the clips. These mechanical fixings enable bay widths of up to 1200mm to be achieved in some regions. In other regions, the ULS and Water Pass requirements of AS2047-2014 prevent these wider bay widths from being warranted. Easyscreen, Innoscreen or Altair Component System High Profile Sills and standard heights are required.
4. Water Pass Ratings greater than 300Pa
A High Profile Sill is required to achieve Water Pass ratings greater than 300Pa.
5. Narrower, taller bays with toughened glass
The Product Performance Warranty constraints for annealed glass can also be applied to toughened glass. The Product Performance Warranty constraints for toughened glass cannot be applied to annealed glass.
Warranty
Subject to the Warranty Claim Procedure, Breezway warrants the goods supplied to be free of defects arising from faulty workmanship or materials for a period of up to ten (10) years on frames, seven (7) years on louvre moving parts, and three (3) years on electronic components from the date of purchase and guarantees that services will be rendered with due care and skill. Please download the PDF’s below relevant to your date of purchase.
Breezway VENTORA Warranty Download https://www.breezway.com.au/downloads/australia/Breezway_VENTORA_Warranty_March_2024.pdf
Louvre Care And Maintenance
Maintaining Aluminium Finishes
Regular maintenance of the surface finish will be necessary to reduce the rate of weathering. The frequency of cleaning will depend on the environmental conditions, but as a guide should be done at 3 monthly intervals, or more frequently in aggressive coastal or industrial environments.
- Remove loose deposits by gently brushing or hosing.
- Clean using a sponge or soft brush and warm water with a mild detergent. Avoid cleaning agents with a caustic base, abrasive materials or harsh chemicals.
- Rinse with clean water.
- Dry with a chamois (optional).
Apply a ‘non-abrasive’ car polish to maintain the lustre of the finish (optional).
Glass Maintenance
For best results glass blades should be regularly cleaned with mild, non-abrasive detergents. Low e glass blades should be installed with the coated side facing to the inside of the building and should only be cleaned with mild, non-abrasive detergents. Abrasive detergents or cleaning tools will visibly damage the low e coating.
Louvre Maintenance
It is recommended that inspection be carried out at the time of installation and then at yearly intervals. This may be required more frequently depending upon the variation of location, and environmental conditions.
Inspection and checks
- Inspect all fittings and screw fixings for firmness.
- Ensure that all Stronghold System pins (if present) are firmly clicked in place.
- Check the louvre clips for any degradation over time.
- Check that the blade is firmly and safely positioned in the clips.
- Ensure all louvre blades operate freely.
- Ensure that seals are in place and clean.
- The Powerlouvre™ Window should be operated at least once per month.
Lubrication
All internal louvre operating mechanisms are prelubricated, prior to assembly, with a clear lubricant where required. Under normal conditions this will be satisfactory for the life of the window.
Plastic Maintenance
When cleaning plastic components it is recommended to be done by wetting a cloth with a neutral cleaning agent such as a car wash without wax/polymer, or alternatively a mild furniture polish. Acidic or alkaline cleaning solutions, such as vinegar, detergents and glass cleaners should be avoided.
Lock Maintenance
The lock has been designed to be maintenance free besides regular cleaning. If the lock barrel needs to be replaced, for example to change the key types, or if the lock mechanism suffers damage, please contact the window fabricator that supplied the louvre.
Selecting The Right Aluminium Finish
The aluminium components of Altair® Louvre windows are available in three different surface finishes: anodised, standard powder coating and high performance powder coating.
Powder coatings are polyester coatings from leading powder suppliers applied to a thickness of 50 μm and anodised finishes are to a thickness of 25 μm. Over time, weathering of powder coated surfaces should be expected, resulting in a gradual change in appearance.
This will be evident in loss of gloss, chalking, colour change and erosion of the powder coatings. Selecting the right powder for the atmospheric conditions of the site and correct maintenance will be critical to the ongoing appearance of the finish.
The application of high durability powder will reduce this deterioration and is essential for severe industrial, coastal or tropical environments.
Note that industry accepted colour variation can occur during the aluminium anodising process.
Energy Efficiency
Breezway® Altair® Louvre Windows can help to enhance the energy efficiency and comfort of a building by offering:
Maximum ventilation
With no fixed panes and blades that open almost fully horizontally (87º) Altair Louvre Windows welcome fresh, cooling breezes. These cooling breezes reduce the need for power hungry electric air conditioning systems, thereby helping to save our fragile environment.
Tight Sealing
Altair Louvre Windows have an air infiltration rating that meets the requirements of AS2047-2014. Tight sealing reduces draughts thereby allowing heating and cooling systems to run more efficiently
Choice of Glazing
A variety of energy efficient glazing options is available to meet local requirements. For example, in cooling climates toned glass blades reduce the amount of hot sunlight that enters a building. In mixed and heating climates, the improved insulating properties of low e glass blades offer thermal performance comparable to clear double glazing.
Additional Benefits of External Screening
External screens deliver additional insulating and shading benefits to Altair Louvre Windows. The Easyscreen Altair Louvre Window is the only window system currently energy rated under the Window Energy Rating Scheme (WERS) with permanent, externally fitted metal mesh screens. WERS ratings of screened products can be found at www.wers.net/werscontent/screened-products
Airborne Sound Insulation
Altair Louvre Window
The Altair Louvre window system has been both laboratory and field tested for sound transmission loss.
The laboratory tests were conducted by Stantec Australia Pty Ltd. Testing was conducted to AS1191-2002 in accordance with AS5218:2018.
The field tests were conducted by a member firm of the Association of the Australia Acoustical Consultants. Testing was conducted to AS 5218:2018 and ISO 717-1: 1996E.
IGLU Louvre System
The Altair IGLU Louvre System has been laboratory tested for sound transmission loss.
The laboratory tests were conducted by Stantec Australia Pty Ltd. Testing was conducted to AS1191-2002 in accordance with AS5218:2018.
Test results for IGLU Louvre System.
Breezway® Policy For Louvres and Breezway Fixed Lites in Bush Fire Prone Areas
Using Altair® Louvres in a Bush Fire Prone Area
The following requirements for using louvre windows in bushfire prone areas are based on:
- Our interpretation of AS 3959-2018 “Construction of Buildings in Bushfire Prone Areas”,
- BAL-29 bushfire testing by the CSIRO of the Easyscreen Altair Louvre Window System with CrimSafe screens to AS1530.8.1-2007 (CSIRO Report number FSZ1572), and
- A CSIRO Infrastructure Technologies report assessing alternative steel mesh screens (CSIRO Report number FCO-3026).
- BAL-40 bushfire testing by Warrington Fire of the Easyscreen Altair Louvre Window System and Easyscreen Altair IGLU Double Glazed Louvre System with Invisi-Gard screens to AS1530.8.1-2007 (Warrington Fire Report number FRT200407), and
- A Warrington Fire report assessing alternative steel mesh screens (Warrington Fire Report number FAS200470).
- Breezway Easyscreen Window Systems Fixed Lites can meet deemed-to-satisfy provisions of AS3959:2018 providing certain conditions are met for each Bushfire Attack Level. The Easyscreen Window System is an aluminium framing system with metal hardware.
We recommend that you receive independent advice from both an engineer and your local council authority to determine your level of construction and to ensure that you comply with the correct protection measures for your individual circumstance.
AS 3959-2018
Bushfire Attack Level Low
Louvres and Fixed Lites
- The degree of bushfire attack is considered insufficient to warrant specific construction requirements.
Bushfire Attack Levels 12.5 & 19.
Louvres
- Glazing must be toughened glass if the window is within 400mm of the ground or other structures within 18° of the horizontal (such as an eave). Glazing elsewhere may be annealed.
- Louvres are to be screened externally using corrosion-resistant steel, bronze or aluminium mesh.
- Maximum screen aperture size of 2 mm in such a way that the entire opening remains screened when the louvre is open.
- Gaps between the screen and the window do not exceed 3mm.
- The mesh or perforated screen must be completely supported by framing made of metal or bushfire resistant timber.
Bushfire Attack Level 40 – Alternative Solution for Louvres
- Alspec has completed BAL-40 testing using the Altair Louvre within an aluminium Alspec frame fitted with an Invisi-Gard stainless steel mesh screen. Refer to www.invisi-gard.com.au/bushfiretesting for more details.
Bushfire Attack Level FZ
Louvres and Fixed Lites
- Windows are to be completely protected by compliant bushfire shutters.
Breezway® Policy for Louvres Adjacent to Australian Swimming Pools
Using Altair® Louvres Adjacent to Swimming Pools
Clause 2.6 of AS1926.1-2012 “Swimming pool safety. Part 1: Safety barriers for swimming pools” defines the requirements for windows opening directly into a pool area. Openable portions of the windows must comply with one of the following:
- Be totally covered by bars or a metal screen, that are fixed to the building with fasteners that can only be removed by the use of a tool. The opening between bars and the horizontal dimensions of openings in a metal screen shall not be greater than 100mm.
- Be fixed to the building with fasteners that can only be removed by use of a tool so that it will remain closed or will open to a maximum of 100mm.
A 152mm Altair Louvre Window with the Stronghold System and restricted opening to 100mm will comply with AS1926.1-2012 clause 2.6(b).
A 102mm Altair Louvre Window with the Stronghold System will comply with AS1926.1-2012 clause 2.6(b).
If compliance is required to earlier versions of AS1926 where restricted openings must also satisfy clause 3.1 then:
A 152mm Altair Louvre with the Stronghold System and restricted opening to 80mm and maximum blade length of 600mm will comply with AS1926.1-2007 clause 2.7(a)ii
A 102mm Altair Louvre with the Stronghold System, toughened glass blades and restricted opening to 80mm and a maximum blade length of 600mm will comply with AS1926.1-2007 clause 2.7(a)ii.
Fall Prevention through Openable Louvre Windows
Using Altair Louvres to Meet Fall Prevention through Openable Window Requirements
Clauses 11.3.7, 11.3.8 and D3D29 of the Building Code of Australia detail the situations in which openable windows require fall prevention measures and the requirements that windows in these situations must meet.
The following Altair Louvre Window configurations have passed testing to “AS5203:2016 – Protection of Openable Windows/Fall Prevention”:
Note
The Altair Louvre restricted opening devices and the Stronghold System blade retention are permanent fixtures which cannot be removed, unlocked or overridden without complex tool usage (such as a drill). Products that can be unlocked or overridden with a simple tool or two handed operation, such as removing a louvre blade with coordinated two-handed operation, will also require additional barriers to 865mm.
If screens will be used to provide protection as per Clauses 11.3.7, 11.3.8 and D3D29 then the Altair Louvre Windows will not require the Stronghold System and will not require blade openings to be restricted. The window frame and securely fitted screen assembly should be tested to “AS5203:2016 – Protection of Openable Windows/Fall Prevention” to ensure that the assembly will not permit a 125mm sphere to pass through it and resist a horizontal outward force of 250N.
Balustrades
Breezway Altair Louvre products are not a balustrade system. Nor are any other window types. Balustrades are one type of barrier. Altair louvres with the Stronghold System and suitable openings are another. It is always important to ensure that a particular barrier system complies with the relevant Building Codes and associated Standards. Breezway louvres with the Stronghold System have passed testing up to 750N for AS1170.1 barrier infill loadings, making them suitable for use in the following occupancy types: A, B, E, and C3. For other occupancy types, appropriate, permanently fixed screening is recommended.
Altair® Louvre Gallery Sets
For Glass & Aluminium Blades
Altair Louvre
Altair Powerlouvre® System
Altair Keylock Louvre
152mm Fixed Louvre
Note
Altair louvres cannot be used on rake head windows.
Altair® Louvre Gallery Features
Gallery Type Options
- Single Operating Mechanism
- The Powerlouvre™ System
- The Stronghold® System
- Key Lock Gallery — not available with: variable keylock positions, additional keylocks or Powerlourve® options.
- Fixed Louvre Gallery
“Standard” Inclusions- Extruded channel with or without screw holes;
- Single operating mechanism with single left hand control handle (viewed from inside);
- Black handles and clips for all finishes, except white handles and clips for region specific Standard White finishes;
- Standard louvre gallery heights.
- Choice of clips to suit 6mm or 14mm blades.
“Off Standard” Features Available- (No change to manufacturing lead time)
- Right hand control (viewed from inside);
- Top Extended channel to next standard clip size, or cut to length channel for off standard heights;
- Colour matched handles and clips;
- Optional handle Low Profile Handle, Ring Handle (P13);
- 80mm or 100mm restricted opening
- Variable or additional handle position.
Off Standard Louvre Gallery Heights (Extended Channel)
It is recommended that, wherever possible, Altair® Louvre Windows should be designed to a standard height. This will reduce the product cost and ensure effective opening of all blades.
In some circumstances this may not be possible. In these instances the Altair Louvre can be ordered with Extended Channel. The Extended Channel is a continuation of the channel that is cut to size, giving improved appearance an water performance in comparison to an add-on extension piece.
The Louvre is supplied with an Extended Channel that can be cut back to the required height. Note that the part to be cut down is located at the top of the gallery. All glass blades must comply with the requirements of AS1288 ”Glass in Buildings”.
Off-standard heights within 5mm of a standard height do not need a fixed blade but the shrouds of the top clips may need to be trimmed for off-standard heights between 5mm and 2mm below a standard height.
Off-standard heights that are not within 5mm of a standard height will be fitted with a top fixed blade.
For example, the louvre illustrated is ordered as 3 blade with Extended Channel. Off-standard heights are not available with the IGLU Double Glazed Louvre System or the Dualair Secondary Glazed Louvre System.
Altair® Louvre Handles
Standard Handle
Low Profile Handle
Ring Handle (P13)
Powerlouvre™ System*
Map Rod
Altair® 152mm Louvre Standard Handle Positions
Formulas for Other Handle Positions
- Low Profile Handle Position = Standard Handle Position – 3mm
- Ring Handle Position = Standard Handle Position +22mm
Note
Altair® IGLU® Louvre System Standard Handle Positions for 800mm Blade Lengths
Formulas for Other Handle Positions
- Low Profile Handle Position = Standard Handle Position – 3mm
- Ring Handle Position = Standard Handle Position +22mm
Note
Altair® IGLU® Louvre System Standard Handle Positions for 1,127mm Blade Length
Formulas for Other Handle Positions
- Low Profile Handle Position = Standard Handle Position – 3mm
- Ring Handle Position = Standard Handle Position +22mm
Note
Altair® Louvres With Restricted Opening
Altair Louvre Windows can be restricted to only allow a nominal opening of 80mm or 100mm between open single glaze blades, and 72mm between IGLU double glazed blades.
Restricted openings can be used to prevent clips from impacting screens in some frames, or to limit the size of objects able to pass through the open window.
For details on compliance options for louvres adjacent to swimming pools and for fall prevention through openable windows see page 10.
Altair® Louvre Keylock
The Altair Keylock has been designed to be inconspicuous, strong and durable.
Improved Aesthetics
Housing the lock mechanisms internally results in a low profile design. The brushed chrome finish suits all aluminium finishes.
Strong & Durable
All metal construction and housing the mechanisms internally results in a strong, highly durable lock.
Easy Operation With Deep Jambs Or Reveals
The folding key design allows easy locking and unlocking even when situated right beside deep jambs or reveals.
Maintenance Free
No onging maintenance require besides normal cleaning. Tested and passed 15,000 lock & unlock cycles.
Glass Blades
Glass Type
Glass blades must be 6mm thick and monolithic. Laminated glass should not be used due to the risk of delamination.
Breezway Toughened Glass Blades
Regular and toughened glass blades are available directly from Breezway® Australia. Toughened glass should be specified in wet areas or areas where there is a chance of human impact as not only is toughened glass stronger but, if it does break, it produces small pieces of glass with square edges rather than jagged shards of glass which are likely to cause injury. Refer to Glass Standard AS1288 for detailed requirements.
Breezway toughened glass blades are processed to Breezway’s demanding quality specifications which produces blades with a flatness tolerance of +/– 0.35mm per metre. This exceptional flatness ensures excellent sealing and therefore improved wind and water performances. Breezway toughened glass blades are available in clear, clear low e, grey, green, satina and satinlite to allow matching to other windows.
Extruded Aluminium Blades
Refined Design
Breezway aluminium blades feature low profile weatherseals and a clean design at the top of the blade for a minimalist, modern aesthetic.
152mm Aluminium Blade
Altair® PowerlouvreTM System
Anticipation of needs
When paired with intelligent control systems, automated Powerlouvre Windows can be opened and closed in anticipation of the building occupant’s needs. Unlike manually operated windows which are normally opened and closed only once the building occupant has become uncomfortable.
More frequent use
With operation as simple and easy as the push of a button, Altair Powerlouvre windows will be opened and closed more frequently than windows which require more effort to operate, and therefore the benefits of the windows will be enjoyed more frequently.
Integrated Motor and Gearbox
The Altair Powerlouvre Window incorporates a motor and gearbox concealed within the Easyscreen Window Frame or within the head section, resulting in an automated louvre window with no visible motors, rods or arms.
Variety of Control Options
Control is possible via wall switches, remote control systems or integration into building management systems.
Frame Options
Altair Powerlouvre Windows are available as a complete Window System within the Breezway Easyscreen or Innoscreen Surround Frames, or in component form that can be installed in flat commercial frames or timber frames. (See the WINDOW SYSTEM and OTHER FRAMES sections for standard sizes).
Ease of use
Altair Powerlouvre WIndows can easily be operated by young, aged or infirm building occupants.
PowerlouvreTM System Operating Conditions
PowerlouvreTM System Maintenance
Breezway Powerlouvre Windows should be operated at monthly intervals. Frames should be cleaned periodically as per Breezway Care and Maintenance recommendations.
PowerlouvreTM System Opening Configurations
Powerlouvre Windows that are 2-9 blades high contain one motor per bay and are wired such that the entire window opens and closes simultaneously.
Powerlouvre Windows that are 10-18 blades high contain 2 motors per bay, one motor drives the blades in the top half of the bay and the other motor drives the blades in the bottom half of the bay. 10-18 Blade high Powerlouvre Windows are wired such that the blades in the top halves of all the bays form a bank that opens and closes simultaneously and the blades in the bottom halves of all the bays form a second bank that opens and closes simultaneously. The top and bottom banks can be operated independantly of each other.
PowerlouvreTM System Electrical Requirements & Wiring
- Operating voltage: 24V DC
- Maximum allowed voltage: 29V DC
- Maximum constant current: 0.25A per motor
- Maximum startup current: 0.4A per motor
- Opening time: Approx 14 seconds
- Working temperature: -20°C to +60°C
Note
In extreme cold conditions the windows will not operate if there is excessive ice build up or if the louvre blades are frozen together.
The direction in which the Powerlouvre System moves is determined by the polarity of the low voltage current supplied. Once the Powerlouvre Window has fully opened or fully closed, an electronic circuit stops power being delivered to the motors to prevent the motor being damaged should power be supplied continuously.
Battery Backup
The Powerlouvre System has no integrated battery back up. If the power supply fails the window cannot be operated. If battery back up is required, systems are readily available and can be integrated by qualified suppliers.
Breezway® Transformers
Breezway supplies transformers (as optional extras) that have been specified to meet the particular requirements of Powerlouvre Windows.
- 240V AC input current.
- 24V DC output.
- Two model options with sufficient amps to power up to 6 or 14 Powerlouvre Motors.
- Built-in overload protection to prevent accidental short circuits from damaging the transformer.
Transformers should be installed in an easily accessible location. It is recommended that transformers are located in a position that enables easy power cycling.
Controlling PowerlouvreTM System
Control options include:
- Bell press style wall switches, which allow for simple open and close functionality. One button for open, and one for close.
- Breezway Powerlouvre Apptivate® Advance Control Units, which allow control via a touch sensitive wall plate, remote control via a smartphone application, or automatic operation in response to temperature or timer events.
- Building management systems, which allow control along with other automated building products and automatic operation in response to various sensors and inputs.
Altair® Louvres with the Stronghold® System
Viewed from inside
Blade Retention System
Blades are retained in Stronghold Clips by a pin that passes through the clips, bearing and blade. Once installed, the pins cannot be removed without tools and the blades are prevented from being removed from the clips. Pins are visible on the inside/underside of the clips.
High Rise Applications
Breezway Altair Stronghold Louvres are fit for purpose for installation more than 2 metres above ground level. As the entire glazed area can be opened to allow airflow they can be used to maximise natural ventilation and cooling in multi level applications. They are also ideal for creating winter gardens as they can be opened for ventilation in warmer weather or closed for protection in colder weather.
Frame Options
Altair Stronghold Louvre Windows are available as complete window systems within the Breezway Easyscreen®, Innoscreen® and SL2® Window Systems or in
component form for installation into other manufacturer’s framing systems.
Fall Prevention
Altair Louvre Windows with the Stronghold System are ideal for use in bedrooms, early childhood centres and other situations where fall prevention measures are required by the BCA. With openings on both sides of every blade, they deliver real ventilation benefits for naturally cool, healthy and safe spaces. BCA compliance is proven by successful testing to the Industry Code of Practice “ICP.005 – Protection of Openable Window Testing Specification”.
Blade Options
Processed and toughened glass and processed aluminium blades can be used in the Stronghold System. Heat soak testing of glass blades already processed for use with the Stronghold System is also available. The Altair Stronghold System is available for use with both 152mm and 102mm high blades.
Blade Type Compatibility
PowerlouvreTM System Compatibility
Altair Stronghold Clips are fully compatible with the Powerlouvre Systems and have no impact on minimum and maximum Powerlouvre Window sizes.
Maintenance
If blades need to be removed from an Altair Stronghold Louvre Window or if broken blades need to be replaced, the pins must be removed. The removal process requires tools and will destroy the pins so new pins will be required when blades are re-installed.
Compliance With Balustrading Requirements
The Stronghold System is a window, not a balustrade system. The Stronghold System has been tested to AS2047 “Windows in Buildings” and has completed static load, swing bag and sphere tests. Test reports are available from the Breezway website. It is the responsibility of the building designer to specify systems and products that meet the barrier and balustrade requirements for a building.
Window Sizes
Window Size Constraints
The Altair Product Performance Warranty size constraints for Ultimate Limit State Pressure, Serviceability Limit State Pressure and Water Pass must be adhered to in order to ensure compliance with AS2047.

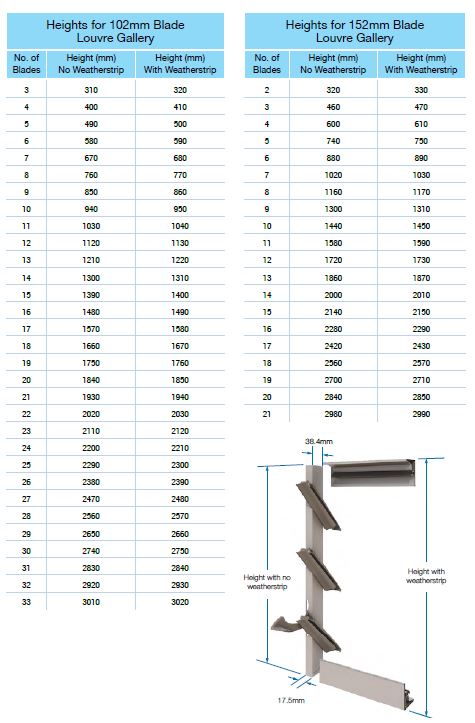

Standard Heights
The standard heights of Breezway Window Systems with Altair Stronghold Louvres are identical to the standard heights of Breezway Window Systems with regular Altair Louvres.
Off-Standard Heights
It is recommended that, whenever possible, Altair Louvre Windows with the Stronghold System should be designed to a standard height. This will reduce the product cost and ensure effective opening of all blades. Some off-standard heights are unavailable when using the 102mm Altair Louvre Galleries with the Stronghold System.
Altair® IGLU® Louvre System
Note
Louvre blades are mechanically retained within the clips by the Stronghold System.
High Energy Performance
The 22mm IGLU® Blade, comprising of 5mm Low E glazing, 12mm Argon filled spacer, and another layer of 5mm Low E, offers the highest thermal performance of any louvre. This double glazed louvre is ideal for use in colder climates, or anywhere higher levels of thermal insulation are required.
Elegantly Robust Clip
The IGLU® Clip utilises the Breezway Stronghold® System, granting superior blade retention, with all the other benefits the Stronghold® System offers. The stepped nature of the IGLU® blade allows for the internal glazing layer to be retained in the clip, while the outer glazing layer finishes flush with the clip. This allows for a completely flat aesthetic to the outside of the window. All IGLU Clips are supplied in Black to offer a neat and uniform look to the window.
Acoustic Performance
The double glazed nature of the Breezway Altair® IGLU® System offers superior sound isolation to that of single glazed louvres, able to achieve an Rw.30 making it an ideal solution for applications near main roads, or anywhere else peace and quiet is desired.
Frameless Glazing
Breezway Altair® IGLU® Blades are assembled in a way that does not require thermally comprimising aluminium framing to each blade. Instead, the blades are capped top and bottom b y rubber bladeto- blade seals, embedded into the Insulated Glazing Unit (IGU) sealant, with a clean ceramic print running the perimetre of each blade to conceal the IGU spacer, while still drawing the eye through to the view outside.
Blade Options
IGLU® Blades come in 4 standard sizes; 300mm, 500mm, 800mm, and 1,127mm. This allows for standard window widths of approximately 400mm, 600mm, 900mm, and 1,200mm in most 3rd party framing systems.
Frame Options
Altair® IGLU® Louvre Windows are available as complete window systems within the Breezway Easyscreen® Window System or in component form for installation into other manufacturer’s framing systems.
IGLU® Blades
Stock Blade Sizes
IGLU blades are available in 4 different stock lengths.
- 300mm*
- 500mm
- 800mm
- 1,127mm
These blade sizes allow for standardised window widths, dependent on the framing system used.
*Please note that the 300mm blade width is not available with the PowerlouvreTM System.
IGLU blades comprise of two layers of 5mm toughened Low E with a 12mm Argon filled spacer, and utilise the Stronghold® System for superior blade retention. IGU spacer concealed behind a mirrored ceramic print.
Window Sizes
Window Size Constraints
The Altair Product Performance Warranty size constraints for Ultimate Limit State Pressure, Serviceability Limit State Pressure and Water Pass must be adhered to in order to ensure compliance with AS2047.
Standard Heights and Widths
Due to the stock nature of the IGLU Louvre System, standard widths apply as well as standard widths for each system. Standard size charts on page 36.
Standard Heights

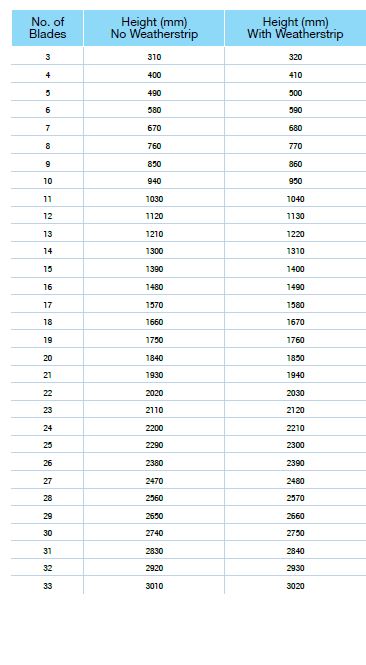

Standard Height sizes are measured from bottom of visible metal to top of visible metal.
*Height without weatherstip = -10mm for manual, -40mm for PowerlouvreTM.
Standard Widths
Installation Options
In component form, Breezway Altair louvre galleries can be used in some regular timber, aluminium and uPVC window frames. If installed in a frame that is plumb and true, and according to Breezway’s installation instructions, the Altair Performance Warranty is not affected in any way.
| Visible fixings | None | Visible fixings on louvre channel | None | Depends on the frame design – some have compatible snap-in points |
| Maximum warranted water pass pressure | 450Pa | 300Pa | 450Pa | 300Pa if galleries have screw holes – 450Pa if galleries have no screw holes |
| Compatibility with the Stronghold System | Yes | Yes | Yes | Yes |
| Compatibility with the Component PowerlouvreTM System | Yes | Yes | No | Depends on the frame design |
Altair Proprietary Frames
Many leading window fabricators, realising the value of Altair louvres, have committed to maintaining compatibility between their proprietary frames and the Breezway Altair louvre system. As window frame fabricators do make periodic improvements to their frames, please refer to each fabricators’ website for the latest information on their proprietary framing system.
| Fabricators | Altair Compatible Frame | Column 3 | Column 4 |
|---|---|---|---|
| Alspec | Airflow® Plus 125mm Framing | www.alspec.com.au | 1300 257 732 |
| G James | 050 Series | www.gjames.com.au | 07 3877 2333 |

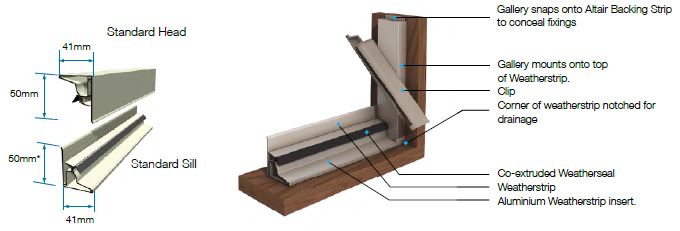

Weatherstrips and Backing Strips

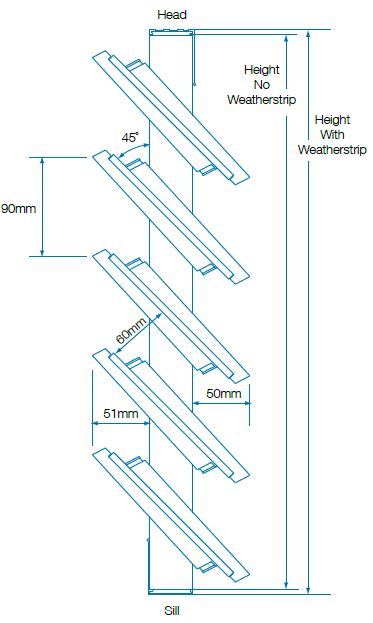

Standard Height
*High Profile Sill height = 66.5mm

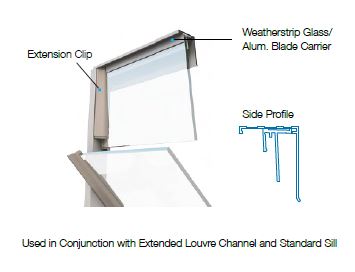

Off Standard Height Head for Glass or Aluminium Blades
- The same Weatherstrip is used on both the head and sill for standard glass and aluminium louvres.
- Off Standard Height Galleries that are within 5mm of a Standard Height Gallery will not have a top fixed blade and will therefore require Standard Height Weatherstrip sets. Off Standard Height Galleries that are more than 5mm greater than or less than a Standard Height Gallery will have a top fixed blade and will therefore require Off Standard Height Weatherstrip sets.

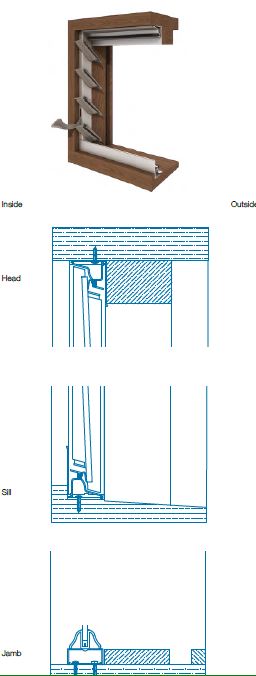

Example of Altair® Component System fitted in a Timber Surround Frame
Standard Heights – Altair® Component System

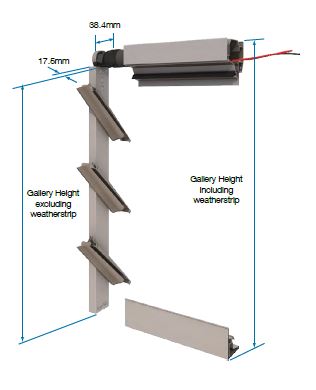

Altair® Powerlouvre™ Component System
For projects where Powerlouvre Windows are desired in a framing system other than the Breezway Easyscreen® Window System, Altair Powerlouvre Windows are available in component form.
The Altair Powerlouvre Component System can be assembled and fitted by approved fabricators into selected timber and flat aluminium frames that are wider than 65mm. Breezway Component Powerlouvre head and sill weatherstrips must be used.
Wires emerge 1 metre from the top right hand side of the Easyscreen Frame. Four metres of wiring is supplied with component Powerlouvre Windows.
Please consult Breezway® for frame compatibility advice.
Note
is compatible with the Altair Powerlouvre Component System, but will require additional clearance from the channel.

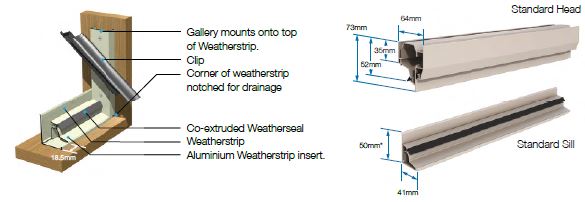

Altair® Powerlouvre™ Standard Height Louvre Weatherstrip
*High Profile Sill height = 66.5mm
- Weatherstrip, complete with seal, must be used to gain manufacturer’s performance warranty and to conceal the Powerlouvre motor.
- Weatherstrips to head and sill add 40mm to overall gallery height.

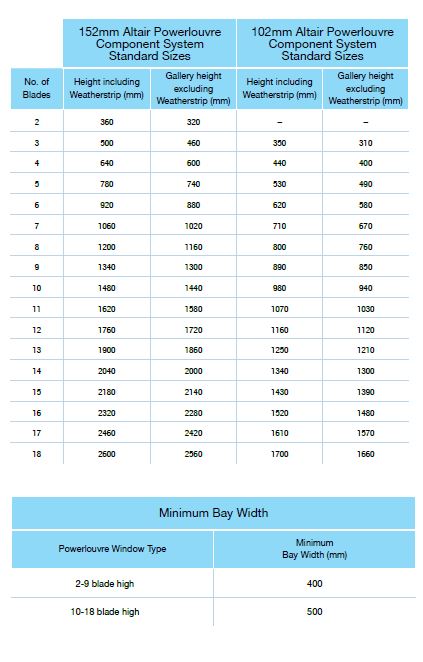

Standard Heights – Altair® PowerlouvreTM Component System
152mm Powerlouvre Component System:
- Off-standard heights between 6mm and 42mm greater than a standard height are not available for 152mm Powerlouvre Component System.
- All other off-standard heights are available.
102mm Powerlouvre Component System:
- Off-Standard heights between 1mm and 5mm below a standard frame height are not available.
- Off-standard heights between 6mm and 44mm greater than a standard height are not available for 102mm Powerlouvre Component System.
- All other off-standard heights are available.
Example of Altair® Powerlouvre™ Component System fitted in a Timber Surround Frame
Altair® Blade Formulas

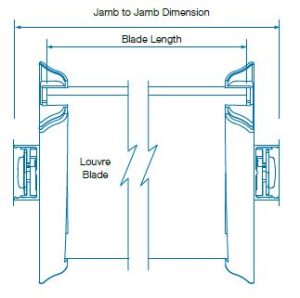

Blade Cut Length Standard Jambs

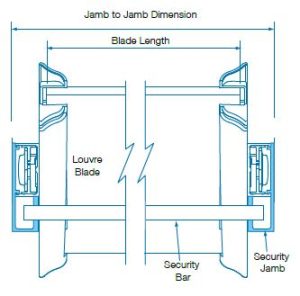

Blade Cut Length Breezway® Security Jambs

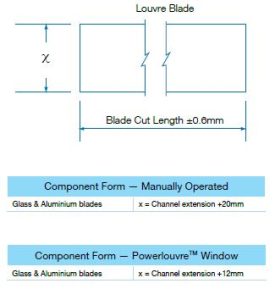

Extension Blade Dimensions
Note
For allowable length of blades refer to AS1288 and Breezway Louvre Windows’s PRODUCT PERFORMANCE WARRANTY.
Allowable tolerance = +/-0.6mm
152mm Altair® Fixed Louvre
Note
Applications for Fixed Vent Louvres
Use fixed vent louvres where permanent ventilation, light, privacy and a degree of weatherproofing is required.Some typical applications include:
- Vented roofs
- Laundries (industrial, domestic)
- Bathrooms
- Public Amenities
- Housing for air conditioning units
Altair® Louvre Security Jamb
152mm Louvre Galleries Only

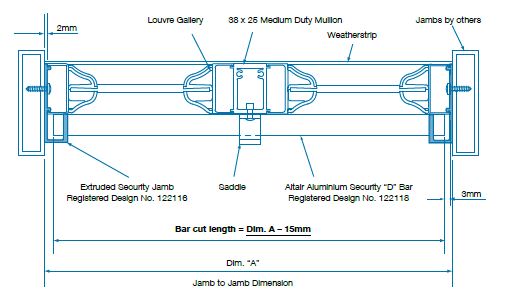

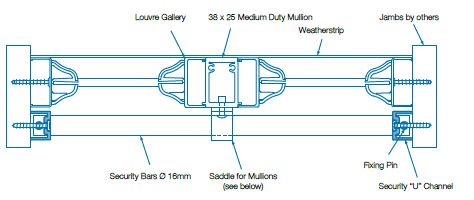

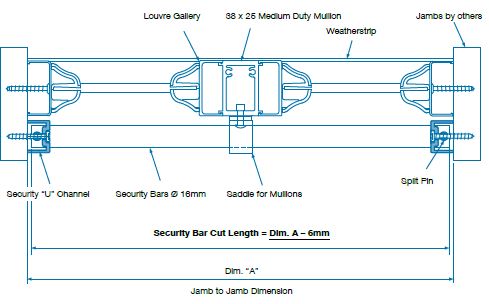

Security Bar Cut Lengths For Security Jambs
- Maximum permissible taper in jamb section is 4.0mm
- Tolerance on bar cut length to be ±1.0mm
- Maximum bar length unsupported is 900mm

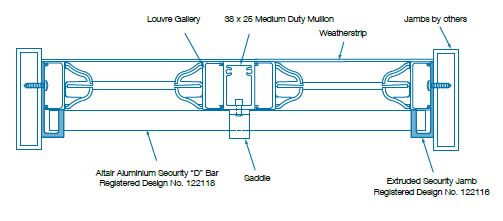

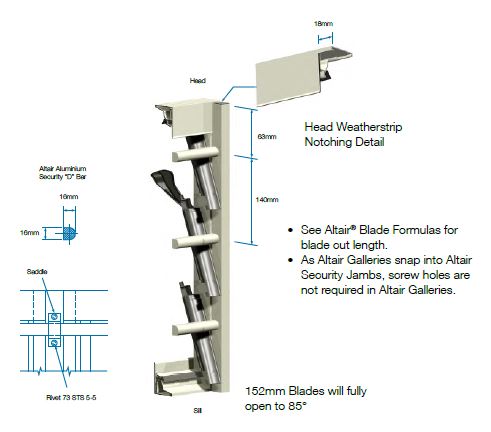

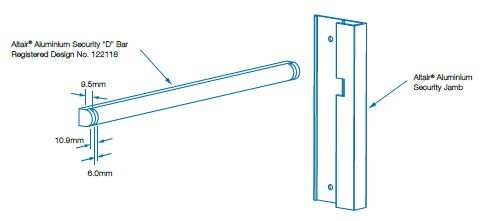

Notching Detail For Security “D” Bar
Aftermarket Security “U” Channels
152mm Louvre Galleries Only
- One way security screw supplied with Aftermarket Security U-Channel.
6mm Spacers are not supplied by Breezway.
Security Bar Cut Lengths For “U” Channel
- Maximum permissable taper in jamb section is 4.0mm
- Tolerance on bar cut length to be ±1.0mm
- Maximum bar length unsupported is 900mm

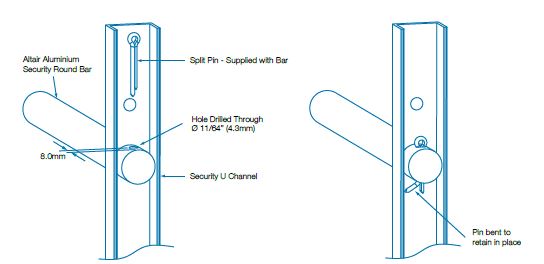

Split Pin Detail For Security Round Bar
Altair® Louvres For Other Frames Checklist
REQUIRED INFORMATION viewed from inside
- Gallery Clip Size
- Gallery Height
- Gallery Colours
- Manual or PowerlouvreTM Galleries
- With or without the Stronghold® System
- Clips & Handle Colour
- Blade Length & Type
- Weatherstrip for head & sill
OPTIONAL INFORMATION
- Left or Right Handed
- Restricted Opening
- Handle Type
- Variable Handle Position/Additional Handles
- Screw Holes (Ref frame, mullion, security type)
- Security Bar System
- Keylock
Altair® Louvres For Other Frames Recommended Specification
A tight specification will help to make sure that what you specify ends up in your building thereby achieving your design objectives.
The louvre windows shall be Breezway® Altair® Louvre Windows
Features:
- Unique drainage channels for superior water performance.
- Unique ‘Living Hinge’ design that pulls the clips tightly against the channel when closed for superior water performance and air infiltration.
- Low profile keylock with lock barrel housed inside the louvre channel.
- Passed testing to 40,000 open/close cycles for long operational life.
- Passed testing to 15,000 lock/unlock cycles for long operational life.
- Altair Louvres have passed AS2047 testing at 3,000mm high.
The louvre windows shall be Breezway® Altair® Powerlouvre™ Windows
Features:
- Unique drainage channels for superior water performance.
- Unique ‘Living Hinge’ design that pulls the clips tightly against the channel when closed for superior water performance and air infiltration.
- Low profile keylock with lock barrel housed inside the louvre channel.
- Altair Louvres have passed testing to 40,000 open/close cycles for long operational life.
- Altair Louvre keylocks have passed testing to 15,000 lock/unlock cycles for long operational life.
- Altair Louvres have passed AS2047 testing at 3,000mm high.
- Pinned design that mechanically retains blades within the clips to prevent blade dislodgement under human impact.
The louvre windows shall be Breezway® Altair® Louvre Windows with the Stronghold® System
Features:
- Unique drainage channels for superior water performance.
- Unique ‘Living Hinge’ design that pulls the clips tightly against the channel when closed for superior water performance and air infiltration.
- Low profile keylock with lock barrel housed inside the louvre channel.
- Altair Louvres have passed testing to 40,000 open/close cycles for long operational life.
- Altair Louvre keylocks have passed testing to 15,000 lock/unlock cycles for long operational life.
- Altair Louvres have passed AS2047 testing at 3,000mm high.
- Pinned design that mechanically retains blades within the clips to prevent blade dislodgement under human impact.
The louvre windows shall be Breezway® Altair® Powerlouvre™ Windows with the Stronghold® System
Features:
- Unique drainage channels for superior water performance.
- Unique ‘Living Hinge’ design that pulls the clips tightly against the channel when closed for superior water performance and air infiltration.
- Motors are concealed within the head of the window frame.
- Motors are easily accessible for maintenance.
- Each low voltage motor only requires 0.4 amps to reduce transformer and wiring requirements.
- Motors can be powered by appropriately specified transformers from any supplier.
- Pinned design that mechanically retains blades within the clips to prevent blade dislodgement under human impact.
The louvre windows shall be Breezway® Altair® IGLU® Louvre Windows
Features:
- Totally frameless double glazed louvre blades with embedded seals.
- Seal-on-seal contact between blades.
- Unique drainage channels for superior water performance.
- Pinned design that mechanically retains blades within the clips to prevent blade dislodgement under human impact.
The louvre windows shall be Breezway® Altair® Powerlouvre™ IGLU® Louvre Windows
Features:
- Totally frameless double glazed louvre blades with embedded seal.
- Seal-on-seal contact between blades.
- Unique drainage channels for superior water performance.
- Motors are concealed within the head of the window frame.
- Motors are easily accessible for maintenance.
- Each low voltage motor only requires 0.4 amps to reduce transformer and wiring requirements.
- Motors can be powered by appropriately specified transformers from any supplier.
- Pinned design that mechanically retains blades within the clips to prevent blade dislodgement under human impact.
